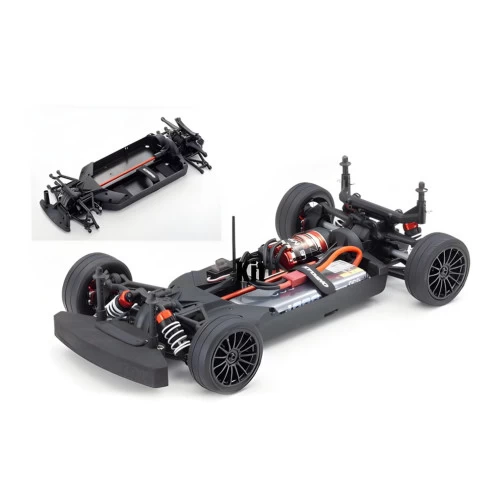

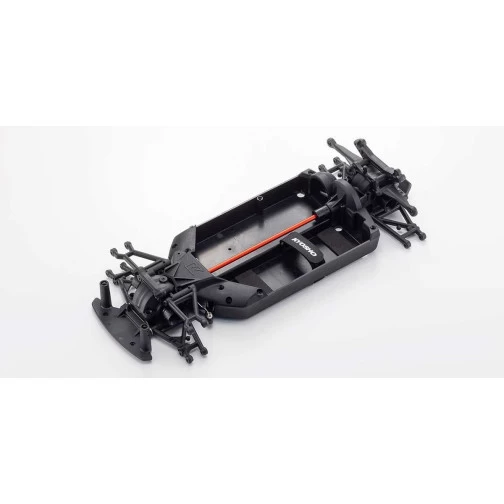

Kyosho 34461B Fazer Mk.2 4WD Chassis Bausatz

The FAZER Mk2 Readyset was created for the pure enjoyment of R/C car driving. Now available as a chassis kit, owners have the flexibility to add their own body and R/C system. Specifications have been elevated with optional parts such as HD TC center shaft S and TC universal swing shaft L to enhance the unrivaled symmetrical design and front-rear suspension balance of the lightweight chassis for R/C racers to enjoy. While the deckless design looks simple, a reduced number of components improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon material further reduces weight and improves impact resistance. With its unique design, the FZ02 chassis embodies features and performance that will appeal to R/C drivers of all levels.

40% pre-assembled (shocks and diff gears are not filled with oil so assembly can be completed to preferred setting). The FZ02’s effective low center of gravity design compliments the high strength and rigidity realized through front & rear stiffeners and rib reinforcement at key sections of the chassis.

Oil shocks and springs optimize the front-rear geometric balance, delivering both light handling and precise control. (Silicone oil for the shocks is sold separately)

TECHNISCHE DATEN:

• Länge: 375 mm
• Breite: 200 mm/190 mm
• Bodenfreiheit: 8 mm (ca.)
• Radstand: 260 mm
• Lauffläche(Karosseriebreite: 190 mm)F:164 mm/R:164 mm
• Lauffläche(Karosseriebreite: 200 mm)F:174 mm/R:174 mm
• Reifen F: f66 mm x 25 mm/R:f66 mm x 25 mm
• Getriebeverhältnis 6,54:1
• Speichergesamtgewicht ca. 1490 g (bei 7,4V / 4000 LiPo)

BENÖTIGTES ZUBEHÖR:

• Fernsteuerung mit Servo
• Karosserie
• 540-550 Elektromotor
• Fahrtenregler (Größe:L36xW32xH23mm oder weniger)
• Fahrakku & Ladegerät
• Dämpferöl
• Diff.-Fett
• Motorritzel
• Farbe für Karosserie
